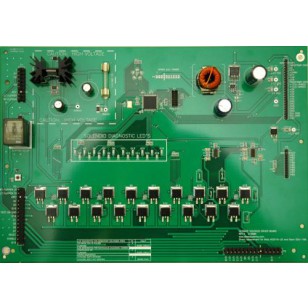

Alltek Ultimate Solenoid Driver Board

Ultimate Solenoid Driver board is the second most important board in your Bally®/Stern® pinball game right after the Ultimate MPU board. This board generates the +5vdc and +180vdc voltage. These voltages are then distributed within your pinball game. Our Solenoid board provides a clean and efficient power source that generates less heat for your machine. This is so important and will extend the life of your game! In this new design of the Solenoid board we have also included a larger current capability with over/short circuit protections! And don’t forget our other important features such as coil circuit protection, LED’s for all voltages and coils, and more new features to help your game run great.

The Ultimate Solenoid Driver Board is a direct replacement for Bally® AS2518-16, AS2518-22, AS2518-25, A084-91612-0000 and Stern® SDU-100.

NEW!

From the makers of the world famous ULTIMATE MPU Board for pre 1984 Bally & Stern electronic pinball machines, comes the

ULTIMATE SOLENOID DRIVER Board.

The new

ULTSDB

Replaces old Bally AS-2518-16, AS-2518-22

and Stern SDU-100/B-432 solenoid driver boards with a new high tech, high power, "bullet-proof" design that is so reliable it comes with a lifetime warranty.

Features include:

• High Voltage 180 Volt DC @ 50 watts like the original design for games with extra displays.

• Short circuit protection on the low voltage power supplies.

• +5vdc @ 5amp low voltage power supply. Extra power for popular LED style displays.

• LED status indictors on all voltages.

• Using the latest MOSFET devices for solenoid drivers.

• Lower 'on' resistance MOSFET drivers means more responsive coils – better, faster solenoid action.

• All Solenoid MOSFET drivers have dual function LED indictors that indicate proper operation as well as indicating a fault condition such as a shorted coil. Makes game repairs fast and easy.

• MPU fault protection circuit. Protects solenoid drivers and coils from shorts. Caused by a faulted MPU which locks on a solenoid.

• Pulsing 'Heartbeat' status LED's.

• No obsolete components used.

• Lifetime warranty comes with the best support in the business.




  ---


  Replaces:
• Bally AS-2518-16
• Bally AS-2518-22
• Stern B-432
• Stern SDU-100

• Fits in the following games:






  Bally Games   Black Jack Black Pyramid BMX Centaur Centaur II Cybernaut Dolly Parton Eight Ball Eight Ball Deluxe Eight Ball Deluxe Ltd Elektra Embryon Evil Knievel Fathom Fireball II Fireball Classic Flash Gordon Freedom Frontier Future Spa Gold Ball Grand Slam Harlem GlobeTrotters Hotdoggin

  Kiss Kings of Steel Lost World Mata Hari Medusa Mr. & Ms Pacman Mystic Night Rider Nitro Ground Shaker Paragon Playboy Power Play Rapid Fire Rolling Stone Silverball Mania Six Million Dollar Man Skate Ball Space Invaders Speakeasy 2 & 4 Player Spectrum Spy Hunter Star Trek Strikes and Spares Super Sonic Vector Viking Voltan X's and O's Xenon
